1. Star ModelSim and Make filelist

Star your modelsim and change the directoryto youre project folder.

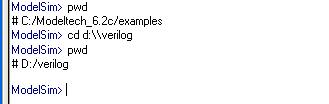

Use “pwd “to show your current directory.

Use “cd d:\verilog“to change directory.

Use “dir *.v /b/s >filelist.f “ to make file list.

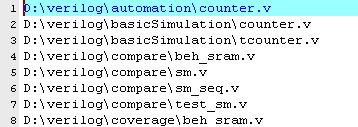

The file list is as follow, which contains all the .v files under current folder ,including file in subfolders.

Tips:ifcodes are written in Verilog HDL , there is no need to adjust the sequence of the filelist , while in VHDL, some files should be compiled first , so the filelist sequence may need some adaptation.

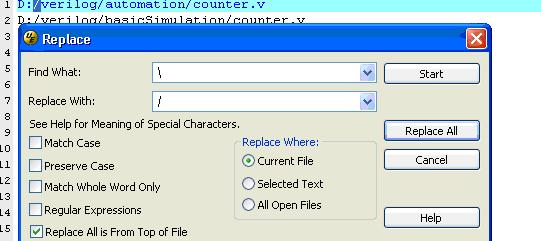

2.use UltraEdit to replace “” with “/”.

3. create your modelsim .lib and .work.

change the directoryto youre project folder ,and copy filelist.f there.

Here we “cd projects”

Use “vlib work “ to build work lib.

Use “vmap work work “ tomap work lib.

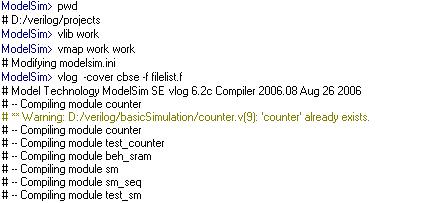

4. compile the filelist.f with coverage to build work lib.

-cover cbse means compile withcondition , branch , statement ,expression coverage.

-f filelist.fmeans compile files listed in this file.

5. start simulation and check the coverage

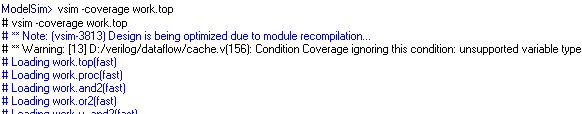

start simulation with “vsim – coverage work.top” and “run 10us “ for some time.

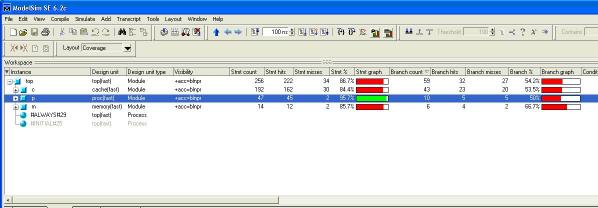

And you can see the coverage like this.

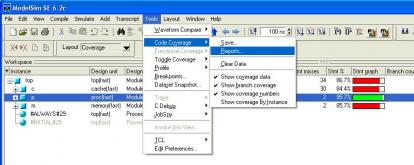

More detailed coverage information is as follow,

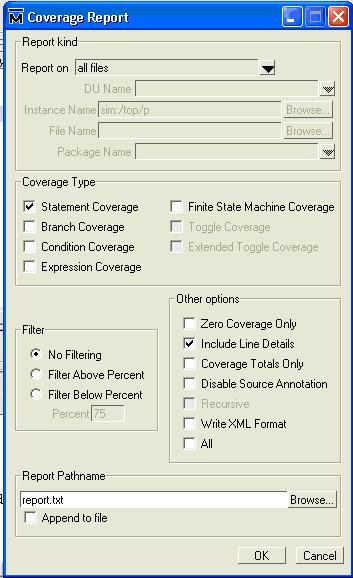

You can get all the coverage information here . If you have any problem in the use of modelsim coverage ,please contact me and I am glad to help .

Written by:Xiao Jie

06-18-2007
