#include <AT89X51.H>
#include <INTRINS.H>
unsigned char code displaybit[] = {0xfe, 0xfd, 0xfb, 0xf7, 0xef, 0xdf, 0xbf, 0x7f};
unsigned char code displaycode[] = {0x3f, 0x06, 0x5b, 0x4f, 0x66, 0x6d, 0x7d, 0x07, 0x7f,
                                    0x6f, 0x77, 0x7c, 0x39, 0x5e, 0x79, 0x71, 0x00, 0x40
                                   };
unsigned char code dotcode[32] = {0, 3, 6, 9, 12, 16, 19, 22, 25, 28, 31, 34, 38, 41, 44, 48,
                                  50, 53, 56, 59, 63, 66, 69, 72, 75, 78, 81, 84, 88, 91, 94, 97
                                 };
unsigned char displaycount;
unsigned char displaybuf[8] = {16, 16, 16, 16, 16, 16, 16, 16};
unsigned char timecount;
unsigned char readdata[8];

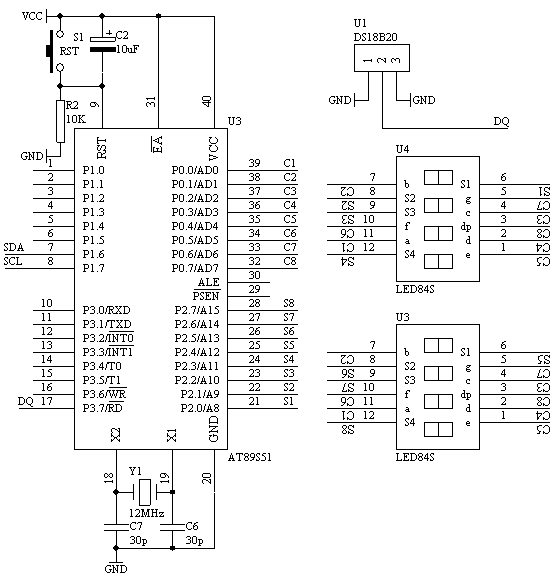

sbit DQ = P3 ^ 7;
bit sflag;

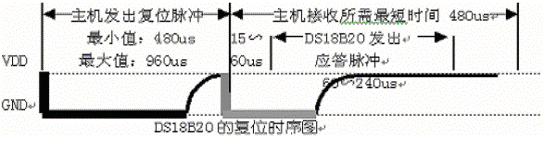

bit resetpulse(void)
{
    unsigned char i;
    DQ = 0;
    for (i = 255; i > 0; i--);
    DQ = 1;
    for (i = 60; i > 0; i--);
    return (DQ);
    for (i = 200; i > 0; i--);
}

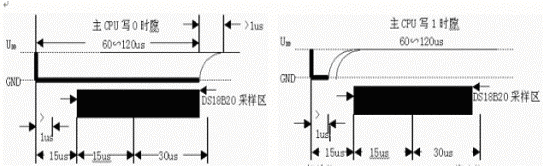

void writecommandtods18b20(unsigned char command)
{
    unsigned char i;
    unsigned char j;
    for (i = 0; i < 8; i++) {
        if ((command & 0x01) == 0) {
            DQ = 0;
            for (j = 35; j > 0; j--);
            DQ = 1;
        }
        else {
            DQ = 0;
            for (j = 2; j > 0; j--);
            DQ = 1;
            for (j = 33; j > 0; j--);
        }
        command = _cror_(command, 1);
    }
}

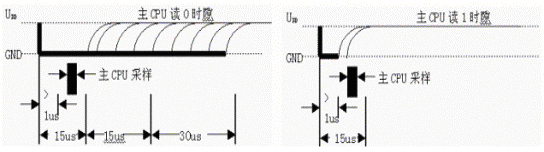

unsigned char readdatafromds18b20(void)
{
    unsigned char i;
    unsigned char j;
    unsigned char temp;
    temp = 0;
    for (i = 0; i < 8; i++) {
        temp = _cror_(temp, 1);
        DQ = 0;
        _nop_();
        _nop_();
        DQ = 1;
        for (j = 10; j > 0; j--);
        if (DQ == 1) {
            temp = temp | 0x80;
        }
        else {
            temp = temp | 0x00;
        }
        for (j = 200; j > 0; j--);
    }
    return (temp);
}

void main(void)
{
    TMOD = 0x01;
    TH0 = (65536 - 4000) / 256;
    TL0 = (65536 - 4000) % 6;
    ET0 = 1;
    EA = 1;
    while (resetpulse());
    writecommandtods18b20(0xcc);
    writecommandtods18b20(0x44);
    TR0 = 1;
    while (1) {
        ;
    }
}

void t0(void) interrupt 1 using 0
{
    unsigned char x;
    unsigned int result;
    TH0 = (65536 - 4000) / 256;
    TL0 = (65536 - 4000) % 6;
    if (displaycount == 2) {
        P0 = displaycode[displaybuf[displaycount]] | 0x80;
    }
    else {
        P0 = displaycode[displaybuf[displaycount]];
    }
    P2 = displaybit[displaycount];
    displaycount++;
    if (displaycount == 8) {
        displaycount = 0;
    }

    timecount++;
    if (timecount == 150) {
        timecount = 0;
        while (resetpulse());
        writecommandtods18b20(0xcc);
        writecommandtods18b20(0xbe);
        readdata[0] = readdatafromds18b20();
        readdata[1] = readdatafromds18b20();

        for (x = 0; x < 8; x++) {
            displaybuf[x] = 16;
        }
        sflag = 0;

        if ((readdata[1] & 0xf8) != 0x00) {
            sflag = 1;
            readdata[1] = ~readdata[1];
            readdata[0] = ~readdata[0];
            result = readdata[0] + 1;
            readdata[0] = result;
            if (result > 255) {
                readdata[1]++;
            }
        }

        readdata[1] = readdata[1] << 4;
        readdata[1] = readdata[1] & 0x70;
        x = readdata[0];
        x = x >> 4;
        x = x & 0x0f;
        readdata[1] = readdata[1] | x;
        x = 2;
        result = readdata[1];

        while (result / 10) {
            displaybuf[x] = result;
            result = result / 10;
            x++;
        }

        displaybuf[x] = result;

        if (sflag == 1) {
            displaybuf[x + 1] = 17;
        }

        x = readdata[0] & 0x0f;
        x = x << 1;
        displaybuf[0] = (dotcode[x]);
        displaybuf[1] = (dotcode[x]) / 10;

        while (resetpulse());
        writecommandtods18b20(0xcc);
        writecommandtods18b20(0x44);
    }
}
